Dynamic 10S-B Rotary Tablet Press
Contact us
Get in Touch with Our Team
If you have a question or would like more details about Dynamic 10S-B Rotary Tablet Press, please complete the form and we will be in touch shortly.
Description
Overview

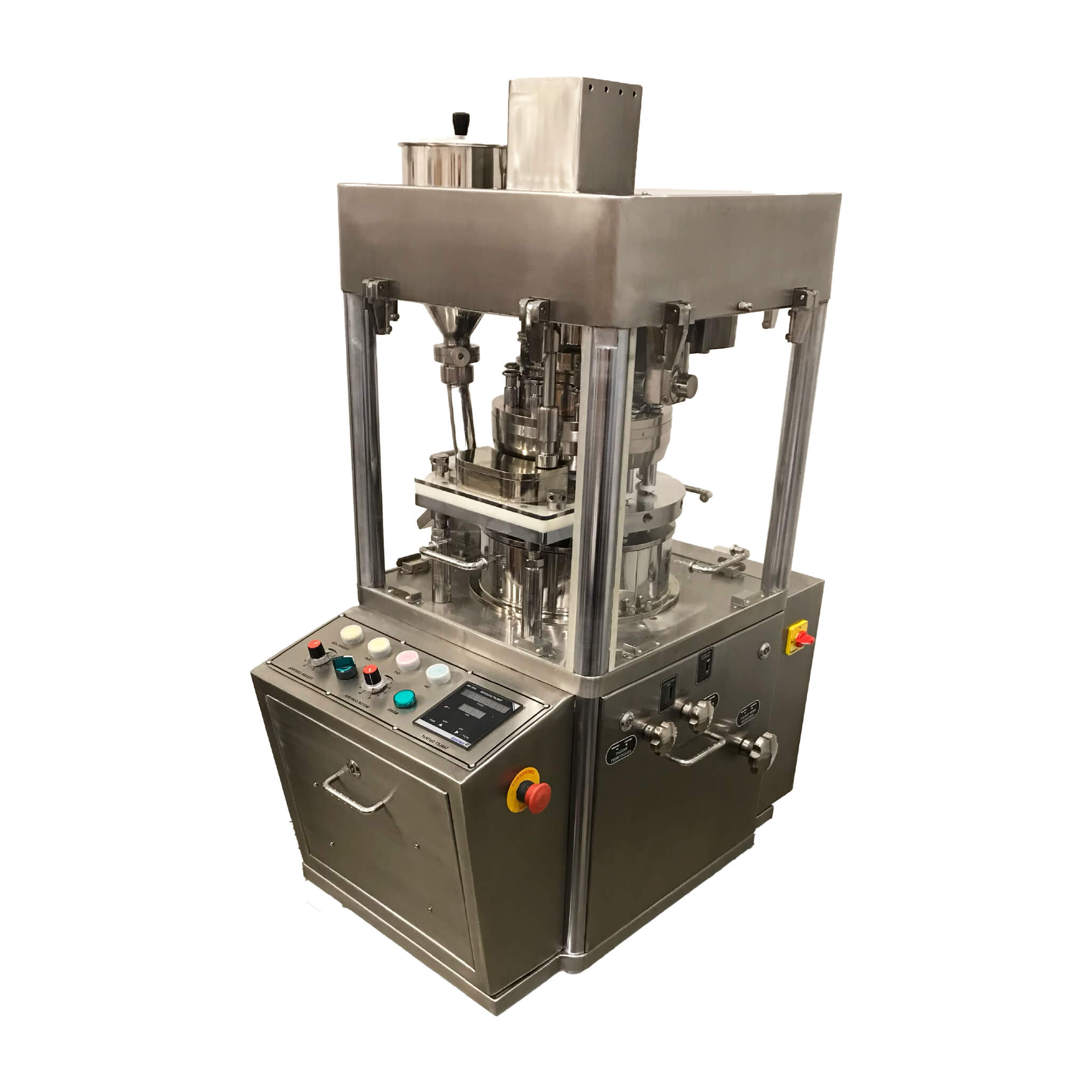

The Dynamic 10S-B Rotary Tablet Press is a compact, high-performance 10-station compression machine designed for reliable, GMP-compliant tablet production. Built with durability, precision, and operator safety in mind, this square table-top model delivers consistent output while maintaining a clean and contamination-controlled manufacturing environment.
Ideal for nutraceutical, food, chemical, cosmetic, and specialty tablet applications, the 10S-B provides excellent flexibility for both development and commercial batch production.
Key Features ★
These are the key features of the Dynamic 10S-B Rotary Tablet Press
Built for Reliable Compression

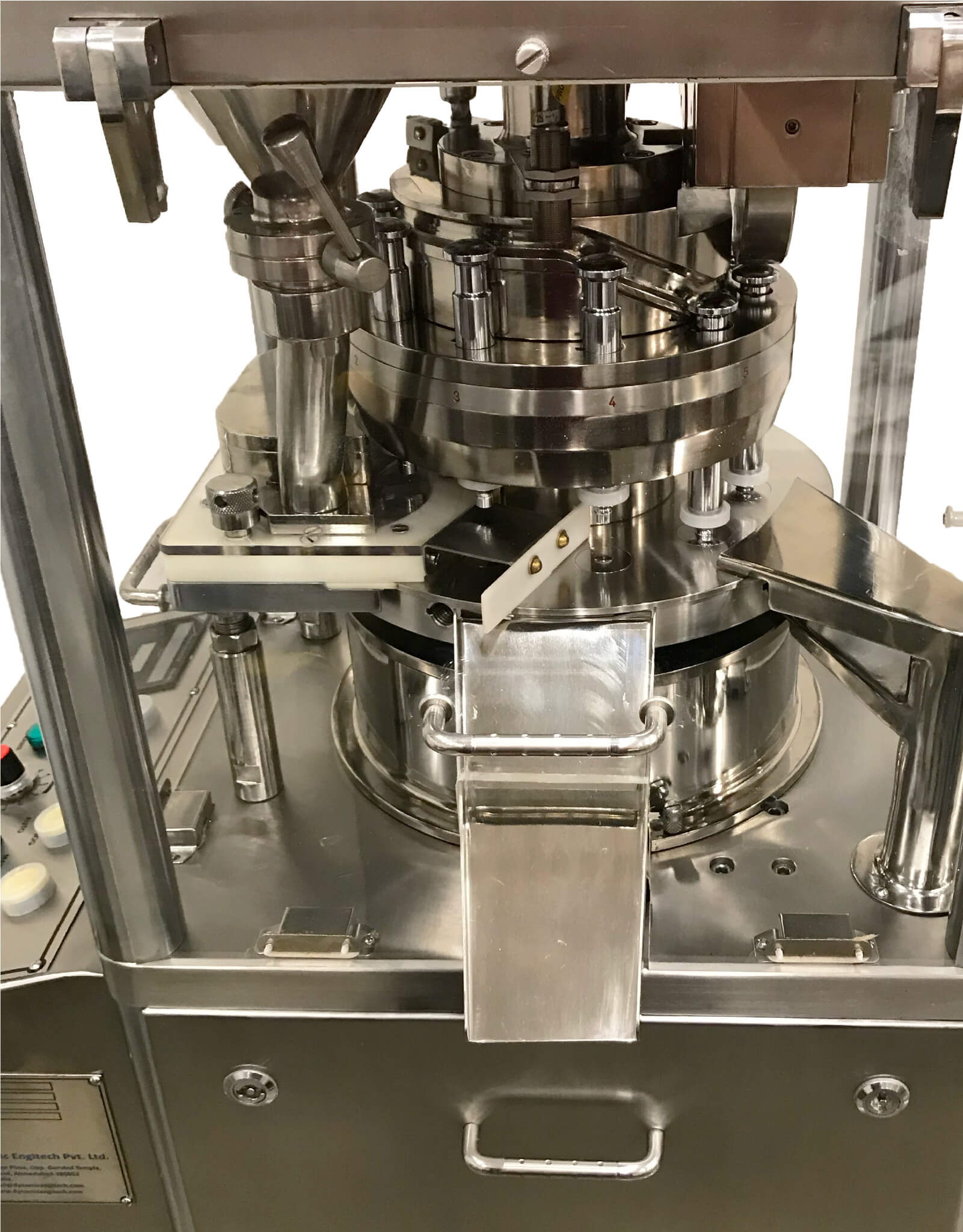

The Dynamic 10S-B is engineered to deliver smooth, stable compression with minimal vibration, ensuring consistent tablet quality across production runs. With its integrated pre-compression facility, operators can achieve accurate tablet weight control and improved hardness consistency. The force feeder system enhances granule flow and helps prevent clogging, making it suitable for both standard and more challenging formulations.
Built with precision bearings and a robust centre-drive gearbox, the machine is designed for long operational life and dependable performance. The full guard interlocking system enhances operator safety, while its compact footprint makes it ideal for facilities where space efficiency is important, without compromising on industrial-grade compression power. The machine also comes supplied with an abundance of spare parts, helping minimize downtime and ensuring continued operation with added peace of mind.
Specifications
| Parameter | Specification |
|---|---|
| Model | Dynamic 10S-B |
| Number of Stations | 10 |
| Tooling Type | B Tooling |
| Output Range | 8,000 – 18,000 tablets/hour |
| Turret Speed | 10 – 30 RPM |
| Maximum Operating Pressure | 60 kN |
| Maximum Tablet Diameter | 16 mm |
| Maximum Fill Depth | 17.5 mm |
| Upper Punch Penetration | 2 – 6 mm |
| Die Diameter | 30.1 mm |
| Die Length | 22.22 mm |
| Punch Diameter | 18.99 mm |
| Motor Power | As per your electrical specifications |
| Machine Dimensions (H × W × D) | 48 × 67 × 105 cm |
| Net Weight (Approx.) | 400 kg |
Reviews
FAQs
Ordering Process
Canada Purchasers
To complete a tablet press purchase in Canada, we are required to collect specific purchaser details. This information supports BC Pill Press Registry reporting and/or our internal compliance records.
| If purchasing as a business: | If purchasing as an individual: |
|---|---|
| Business name | Legal name |
| Business number | Current government-issued photo ID number |
| “Doing business as” (DBA), if applicable | |
| Business address | Address |
| Name of the person making the purchase | |
| Telephone number | Telephone number |
| Email address | Email address |
British Columbia: You are recommended to register with the appropriate regulatory body.
Outside British Columbia (within Canada): The information collected is for our internal records and you will not be required to follow up with the BC registry.
USA Purchasers
For USA imports, the buyer must complete the required DEA notification paperwork prior to import. Please note: you will need a valid business number to import a tablet press.
DEA Form 452: Buyer must complete DEA Form 452 to notify the DEA of a tablet press import. We will provide download instructions here:
Overview
The Dynamic 10S-B Rotary Tablet Press is a compact, high-performance 10-station compression machine designed for reliable, GMP-compliant tablet production. Built with durability, precision, and operator safety in mind, this square table-top model delivers consistent output while maintaining a clean and contamination-controlled manufacturing environment.
Ideal for nutraceutical, food, chemical, cosmetic, and specialty tablet applications, the 10S-B provides excellent flexibility for both development and commercial batch production.
Key Features ★
These are the key features of the Dynamic 10S-B Rotary Tablet Press
Built for Reliable Compression
The Dynamic 10S-B is engineered to deliver smooth, stable compression with minimal vibration, ensuring consistent tablet quality across production runs. With its integrated pre-compression facility, operators can achieve accurate tablet weight control and improved hardness consistency. The force feeder system enhances granule flow and helps prevent clogging, making it suitable for both standard and more challenging formulations.
Built with precision bearings and a robust centre-drive gearbox, the machine is designed for long operational life and dependable performance. The full guard interlocking system enhances operator safety, while its compact footprint makes it ideal for facilities where space efficiency is important, without compromising on industrial-grade compression power. The machine also comes supplied with an abundance of spare parts, helping minimize downtime and ensuring continued operation with added peace of mind.
| Parameter | Specification |
|---|---|
| Model | Dynamic 10S-B |
| Number of Stations | 10 |
| Tooling Type | B Tooling |
| Output Range | 8,000 – 18,000 tablets/hour |
| Turret Speed | 10 – 30 RPM |
| Maximum Operating Pressure | 60 kN |
| Maximum Tablet Diameter | 16 mm |
| Maximum Fill Depth | 17.5 mm |
| Upper Punch Penetration | 2 – 6 mm |
| Die Diameter | 30.1 mm |
| Die Length | 22.22 mm |
| Punch Diameter | 18.99 mm |
| Motor Power | As per your electrical specifications |
| Machine Dimensions (H × W × D) | 48 × 67 × 105 cm |
| Net Weight (Approx.) | 400 kg |
Canada Purchasers
To complete a tablet press purchase in Canada, we are required to collect specific purchaser details. This information supports BC Pill Press Registry reporting and/or our internal compliance records.
| If purchasing as a business: | If purchasing as an individual: |
|---|---|
| Business name | Legal name |
| Business number | Current government-issued photo ID number |
| “Doing business as” (DBA), if applicable | |
| Business address | Address |
| Name of the person making the purchase | |
| Telephone number | Telephone number |
| Email address | Email address |
British Columbia: You are recommended to register with the appropriate regulatory body.
Outside British Columbia (within Canada): The information collected is for our internal records and you will not be required to follow up with the BC registry.
USA Purchasers
For USA imports, the buyer must complete the required DEA notification paperwork prior to import. Please note: you will need a valid business number to import a tablet press.
DEA Form 452: Buyer must complete DEA Form 452 to notify the DEA of a tablet press import. We will provide download instructions here:
